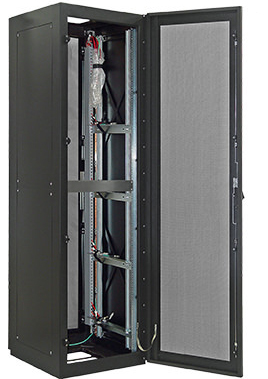

SEISMIC CABINETS
Tested & Certified to Bellcore GR-63-CORE standard for Zone 4
Enhanced welded 12 GA CRS frame construction
Open or Solid side configuration available
Includes Round, Tapped or Universal square hole vertical equipment mounting rails, compliant with EIA 310-E standard, Rack Unit numbering & indexing, fully adjustable
Accessories to customize each individual rack
Match any AMS Standard 595A color to customize
CLOSE
FRAMES
FRAMES ADHERE TO EIA 310 STANDARDS
STATIC LOADS STARTING AT 2000 LBS
EASILY CONFIGURABLE
OPEN OR INTEGRAL SIDE PANEL OPTIONS
SINGLE AND MULTI-BAY CONFIGURATIONS AVAILABLE
SINGLE BAY
FULLY WELDED STEEL COSNTRUCTION
BAY CONFORMS TO EIA 310-E STANDARD DIMENSIONS
ACCEPTS ALL 3RD PARTY EIA 310-E EQUIPMENT & H&H ACCESSORIES
VARIETY OF HEIGHTS & DEPTHS AVAILABLE
GANGABLE TO CREATE MULTI-BAY CONFIGURATIONS
SHOWN WITH RECESSED CASTER BASE – ACCEPTS OTHER BASE OPTIONS
OPEN OR SOLID SIDE OPTIONS
STARTING AT 2000 LB STATIC LOAD CAPACITY
TWO BAY
FULLY WELDED STEEL CONSTRUCTION
SINGLE WELDMENT DIVIDED INTO TWO 19” WIDE BAYS
EACH BAY CONFORMS TO EIA 310-E STANDARD DIMENSIONS
ACCEPTS ALL 3RD PARTY EIA 310-E EQUIPMENT & H&H ACCESSORIES
VARIETY OF HEIGHTS & DEPTHS AVAILABLE
SHOWN WITH EXTENDED FRONT CASTER BASE
INTEGRATED FORK TUBES OPTIONAL
OPEN & SOLID SIDES OPTIONS
THREE BAY
ALSO AVAILABLE IN FOUR BAY CONFIGURATIONS
EACH BAY CONFORMS TO EIA 310-E STANDARD DIMENSIONS
ACCEPTS ALL 3RD PARTY EIA 310-E EQUIPMENT & H&H ACCESSORIES
VARIETY OF HEIGHTS & DEPTHS AVAILABLE
SHOWN ON EXTENDED FRONT RECESSED CASTER BASE
INTEGRATED FORK TUBES OPTIONAL
OPEN & SOLID SIDE OPTIONS
BAY & A HALF
FULLY WELDED STEEL CONSTRUCTION
BAYS INDIVIDUALLY CONFIGURABLE
INTERFACE BETWEEN BAYS OPEN TO ALLOW FOR CROSS CONNECTIVITY
SHOWN ON EXTENDED FRONT BASE
INTEGRATED FORK TUBES OPTIONAL
VARIETY OF WORK SURFACES STYLES AVAILABLE
SLOPE FRONT
FULLY WELDED STEEL CONSTRUCTION
BAY CONFORMS TO EIA 310-E STANDARD DIMENSIONS
ACCEPTS ALL 3RD PARTY EIA 310-E EQUIPMENT & H&H ACCESSORIES
VARIETY OF DESK OPTIONS
VARIOUS CONFIGURATIONS AVAILABLE
GANGABLE TO FORM MULTI-BAY CONSOLES
FRAMES
FRAMES ADHERE TO EIA 310 STANDARDS
STATIC LOADS STARTING AT 2000 LBS
EASILY CONFIGURABLE
OPEN OR INTEGRAL SIDE PANEL OPTIONS
SINGLE AND MULTI-BAY CONFIGURATIONS AVAILABLE
SINGLE BAY
FULLY WELDED STEEL COSNTRUCTION
BAY CONFORMS TO EIA 310-E STANDARD DIMENSIONS
ACCEPTS ALL 3RD PARTY EIA 310-E EQUIPMENT & H&H ACCESSORIES
VARIETY OF HEIGHTS & DEPTHS AVAILABLE
GANGABLE TO CREATE MULTI-BAY CONFIGURATIONS
SHOWN WITH RECESSED CASTER BASE – ACCEPTS OTHER BASE OPTIONS
OPEN OR SOLID SIDE OPTIONS
STARTING AT 2000 LB STATIC LOAD CAPACITY
TWO BAY
FULLY WELDED STEEL CONSTRUCTION
SINGLE WELDMENT DIVIDED INTO TWO 19” WIDE BAYS
EACH BAY CONFORMS TO EIA 310-E STANDARD DIMENSIONS
ACCEPTS ALL 3RD PARTY EIA 310-E EQUIPMENT & H&H ACCESSORIES
VARIETY OF HEIGHTS & DEPTHS AVAILABLE
SHOWN WITH EXTENDED FRONT CASTER BASE
INTEGRATED FORK TUBES OPTIONAL
OPEN & SOLID SIDES OPTIONS
THREE BAY
ALSO AVAILABLE IN FOUR BAY CONFIGURATIONS
EACH BAY CONFORMS TO EIA 310-E STANDARD DIMENSIONS
ACCEPTS ALL 3RD PARTY EIA 310-E EQUIPMENT & H&H ACCESSORIES
VARIETY OF HEIGHTS & DEPTHS AVAILABLE
SHOWN ON EXTENDED FRONT RECESSED CASTER BASE
INTEGRATED FORK TUBES OPTIONAL
OPEN & SOLID SIDE OPTIONS
BAY & A HALF
FULLY WELDED STEEL CONSTRUCTION
BAYS INDIVIDUALLY CONFIGURABLE
INTERFACE BETWEEN BAYS OPEN TO ALLOW FOR CROSS CONNECTIVITY
SHOWN ON EXTENDED FRONT BASE
INTEGRATED FORK TUBES OPTIONAL
VARIETY OF WORK SURFACES STYLES AVAILABLE
SLOPE FRONT
FULLY WELDED STEEL CONSTRUCTION
BAY CONFORMS TO EIA 310-E STANDARD DIMENSIONS
ACCEPTS ALL 3RD PARTY EIA 310-E EQUIPMENT & H&H ACCESSORIES
VARIETY OF DESK OPTIONS
VARIOUS CONFIGURATIONS AVAILABLE
GANGABLE TO FORM MULTI-BAY CONSOLES
FRAMES
SINGLE BAY
TWO BAY
THREE BAY
BAY & A HALF
SLOPE FRONT
FRAMES
SINGLE BAY
TWO BAY
THREE BAY
BAY & A HALF
SLOPE FRONT
CLOSE
BASE
HEAVY DUTY STEEL OR STAINLESS STEEL FORMED CONSTRUCTION
FUNCTIONAL FLEXIBILITY
VARIETY OF WIDTH AND DEPTH OPTIONS AVAILABLE
CASTER/LEVELER READY OR FLOOR MOUNT
CASTER SKIRT
INTEGRATED CASTER PROVISIONS REDUCES OVERALL CABINET HEIGHT
LOWER CENTER OF GRAVITY
ADDITIONAL BALLAST PROVISIONS
SIDE ACCESS FORK TUBES, FLOOR LOCKS & LEVELERS OPTIONAL
BOLT DOWN
SECURE TO ANY FLOOR TYPE
RETROFITTABLE TO DOLLY BASE OR WITH CASTERS
IDEAL FOR DATA CENTERS & RAISED FLOOR APPLICATIONS
ANTI-TIP LEG
INTEGRAL, RETRACTABLE ANTI-TIP PROVISIONS
SPACE SAVING CONVENIENCE
VARIOUS LEG LENGTHS AVAILABLE
EXTENDED FRONT
INTEGRAL CASTER/LEVELER PROVISIONS
CASTERS INSTALLED IN EXTENDED FRONT ENHANCES STABILITY
SIDE ACCESS FORK TUBES & FLOOR LOCKS OPTIONAL
PROTECTIVE MATTING, NOSING & ESD MATTING OPTIONAL
EXTENDED THREE SIDE
INTEGRAL CASTER/LEVELER PROVISIONS
CASTERS INSTALLED IN EXTENDED FRONT ENHANCES STABILITY
SIDE ACCESS FORK TUBES & FLOOR LOCKS OPTIONAL
PROTECTIVE MATTING, NOSING & ESD MATTING OPTIONAL
WIDEST BASE PLATFORM IN SINGLE BAY WELDED DESIGN
DOLLY BASE
REMOVABLE FROM FRAME
SIDE ACCESS FORK TUBES, FLOOR LOCKS & LEVELERS OPTIONAL
SHARP EDGES ELIMINATED WITH RADIUS & BALL CORNERS
BASE
HEAVY DUTY STEEL OR STAINLESS STEEL FORMED CONSTRUCTION
FUNCTIONAL FLEXIBILITY
VARIETY OF WIDTH AND DEPTH OPTIONS AVAILABLE
CASTER/LEVELER READY OR FLOOR MOUNT
CASTER SKIRT
INTEGRATED CASTER PROVISIONS REDUCES OVERALL CABINET HEIGHT
LOWER CENTER OF GRAVITY
ADDITIONAL BALLAST PROVISIONS
SIDE ACCESS FORK TUBES, FLOOR LOCKS & LEVELERS OPTIONAL
BOLT DOWN
SECURE TO ANY FLOOR TYPE
RETROFITTABLE TO DOLLY BASE OR WITH CASTERS
IDEAL FOR DATA CENTERS & RAISED FLOOR APPLICATIONS
ANTI-TIP LEG
INTEGRAL, RETRACTABLE ANTI-TIP PROVISIONS
SPACE SAVING CONVENIENCE
VARIOUS LEG LENGTHS AVAILABLE
EXTENDED FRONT
INTEGRAL CASTER/LEVELER PROVISIONS
CASTERS INSTALLED IN EXTENDED FRONT ENHANCES STABILITY
SIDE ACCESS FORK TUBES & FLOOR LOCKS OPTIONAL
PROTECTIVE MATTING, NOSING & ESD MATTING OPTIONAL
EXTENDED THREE SIDE
INTEGRAL CASTER/LEVELER PROVISIONS
CASTERS INSTALLED IN EXTENDED FRONT ENHANCES STABILITY
SIDE ACCESS FORK TUBES & FLOOR LOCKS OPTIONAL
PROTECTIVE MATTING, NOSING & ESD MATTING OPTIONAL
WIDEST BASE PLATFORM IN SINGLE BAY WELDED DESIGN
DOLLY BASE
REMOVABLE FROM FRAME
SIDE ACCESS FORK TUBES, FLOOR LOCKS & LEVELERS OPTIONAL
SHARP EDGES ELIMINATED WITH RADIUS & BALL CORNERS
Bases
CASTER SKIRT
BOLT DOWN BASE
ANTI-TIP LEG
EXTENDED FRONT BASE
EXTENDED THREE SIDE
DOLLY BASE
Bases
CASTER SKIRT
BOLT DOWN BASE
ANTI-TIP LEG
EXTENDED FRONT BASE
EXTENDED THREE SIDE
DOLLY BASE
CLOSE
TOP PANELS
STEEL OR STAINLESS STEEL FORMED CONSTRUCTION
RANGE OF WIDTH AND DEPTH OPTIONS
WIDE RANGE OF OPTIONS AVAILABLE
FUNCTIONAL FLEXIBILITY
FLUSH
REMOVABLE FOR EASY FIELD REPLACEMENT
SOLID, LOUVERED OR PERFORATED AVAILABLE
MULTIPLE FAN, CFM & LOCATION OPTIONS
MULTIPLE CABLE EGRESS OPTIONS
RAISED
INCREASE FAN INTAKE CLEARANCE WHERE NEEDED
FIELD RETROFITABLE
IMPROVES HOT AIR REMOVAL
MULTIPLE FAN VOLTAGE/CFM OPTIONS
PAGODA
SOLID TOP WITH RECESSED VENTED SIDES
ALLOWS ACTIVE & PASSIVE EXHAUST
INHIBITS INGRESS OF LIQUID & DEBRIS
IMPELLER VENTED
HIGH EFFICIENCY IMPELLER WITH ELECTRONIC SPEED CONTROL
MINIMIZES CFM DEGRADATION WHERE STATIC PRESSURE EXITS
IDEAL IN HEPA/CLEAN ROOM APPLICATIONS
INTEGRAL FRAME
AVAILABLE AS SOLID OR WITH VARIOUS VENTING AND CABLE EGRESS CONFIGURATIONS
PRACTICAL FOR INDUSTRIAL APPLICATIONS
PROVIDES AN ADDITIONAL LEVEL OF SHIELDING IN SOME APPLICATIONS
TOP PANELS
STEEL OR STAINLESS STEEL FORMED CONSTRUCTION
RANGE OF WIDTH AND DEPTH OPTIONS
WIDE RANGE OF OPTIONS AVAILABLE
FUNCTIONAL FLEXIBILITY
FLUSH
REMOVABLE FOR EASY FIELD REPLACEMENT
SOLID, LOUVERED OR PERFORATED AVAILABLE
MULTIPLE FAN, CFM & LOCATION OPTIONS
MULTIPLE CABLE EGRESS OPTIONS
RAISED
INCREASE FAN INTAKE CLEARANCE WHERE NEEDED
FIELD RETROFITABLE
IMPROVES HOT AIR REMOVAL
MULTIPLE FAN VOLTAGE/CFM OPTIONS
PAGODA
SOLID TOP WITH RECESSED VENTED SIDES
ALLOWS ACTIVE & PASSIVE EXHAUST
INHIBITS INGRESS OF LIQUID & DEBRIS
IMPELLER VENTED
HIGH EFFICIENCY IMPELLER WITH ELECTRONIC SPEED CONTROL
MINIMIZES CFM DEGRADATION WHERE STATIC PRESSURE EXITS
IDEAL IN HEPA/CLEAN ROOM APPLICATIONS
INTEGRAL FRAME
AVAILABLE AS SOLID OR WITH VARIOUS VENTING AND CABLE EGRESS CONFIGURATIONS
PRACTICAL FOR INDUSTRIAL APPLICATIONS
PROVIDES AN ADDITIONAL LEVEL OF SHIELDING IN SOME APPLICATIONS
TOP PANELS
FLUSH
RAISED
PAGODA
IMPELLER VENTED
INTEGRAL FRAME
TOP PANELS
FLUSH
RAISED
PAGODA
IMPELLER VENTED
INTEGRAL FRAME
CLOSE
SIDE OPTIONS
STEEL OR STAINLESS FORMED CONSTRUCTION
FUNCTIONAL FLEXIBILITY
EXTENSIVE OPTIONS
FLUSH LIFT OFF
PANELS FLUSH WITH CABINET INCLUDING RECESSED HARDWARE
TWO PIECE CONSTRUCTION IN TALLER UNITS REDUCES WEIGHT
DESIGN ALLOWS FOR QUICK REMOVAL FOR ACCESS OR MAINTENANCE
POCKET HANDLES MAKES HANDLING EASIER
KEY LOCK AND TOOL-LESS LATCHES AVAILABLE
FLUSH REMOVABLE
SINGLE FORMED PANEL – SITS FLUSH TO CABINET SIDE
MULTIPOINT ¼ TURNS WITH SLOTTED INSERT
VINYL COVERED CAMS PROTECT PAINT AND REDUCES VIBRATION
AVAILABLE WITH CUTOUTS FOR CABLE EGRESS
HINGED DOOR
SINGLE PIECE FORMED PANEL COVERS ENTIRE CABINET SIDE
NARROW PROFILE REDUCES OVERALL WIDTH
HINGED AVAILABLE AT THE CABINET FRONT OR REAR –
TAMPER-PROOF HINGES AVAILABLE
STANDARD AS SOLID WITH AVAILABLE HANDLE OPTIONS
INTERNAL LATCHING AVAILABLE FOR ADDED SECURITY
SOLID INTEGRAL
SIDE IS INTEGRAL TO THE CABINET WELDMENT AND CABLE EGRESS CONFIGURATIONS
POPULAR SOLUTION FOR ATE, INDUSTRIAL NEMA APPLICATIONS
COST EFFECTIVE SOLUTION WHEN ACCESS TO SIDES ARE NOT NEED
PREFERRED BY SOME CLIENTS IN HIGH ATTENUATION EMI/RFI APPLICATIONS
CAN BE FITTED TO A VARIETY OF AIR CONDITIONERS
PROVIDES AN ADDITIONAL LEVEL OF SHIELDING IN SOME APPLICATIONS
PROVIDES A LEVEL OF SECURITY NOT OFFERED IN OTHER MANUFACTURES DESIGNS
SHOWN WITH OPTIONAL WALL TRACK AND CABLE EGRESS
EXTENDER FRAME
BOLT OR WELD ON EXTENDERS AVAILABLE
PROVIDE ADDITION ROOM FOR CABLING AND COOLING
FITS MOST OF H&H SIDE PANEL OPTIONS SHOWN WITH HINGED SIDE
FRONT AND REAR ACCESS PANELS AVAILABLE
SIDE OPTIONS
STEEL OR STAINLESS FORMED CONSTRUCTION
FUNCTIONAL FLEXIBILITY
EXTENSIVE OPTIONS
FLUSH LIFT OFF
PANELS FLUSH WITH CABINET INCLUDING RECESSED HARDWARE
TWO PIECE CONSTRUCTION IN TALLER UNITS REDUCES WEIGHT
DESIGN ALLOWS FOR QUICK REMOVAL FOR ACCESS OR MAINTENANCE
POCKET HANDLES MAKES HANDLING EASIER
KEY LOCK AND TOOL-LESS LATCHES AVAILABLE
FLUSH REMOVABLE
SINGLE FORMED PANEL – SITS FLUSH TO CABINET SIDE
MULTIPOINT ¼ TURNS WITH SLOTTED INSERT
VINYL COVERED CAMS PROTECT PAINT AND REDUCES VIBRATION
AVAILABLE WITH CUTOUTS FOR CABLE EGRESS
HINGED DOOR
SINGLE PIECE FORMED PANEL COVERS ENTIRE CABINET SIDE
NARROW PROFILE REDUCES OVERALL WIDTH
HINGED AVAILABLE AT THE CABINET FRONT OR REAR –
TAMPER-PROOF HINGES AVAILABLE
STANDARD AS SOLID WITH AVAILABLE HANDLE OPTIONS
INTERNAL LATCHING AVAILABLE FOR ADDED SECURITY
SOLID INTEGRAL
SIDE IS INTEGRAL TO THE CABINET WELDMENT AND CABLE EGRESS CONFIGURATIONS
POPULAR SOLUTION FOR ATE, INDUSTRIAL NEMA APPLICATIONS
COST EFFECTIVE SOLUTION WHEN ACCESS TO SIDES ARE NOT NEED
PREFERRED BY SOME CLIENTS IN HIGH ATTENUATION EMI/RFI APPLICATIONS
CAN BE FITTED TO A VARIETY OF AIR CONDITIONERS
PROVIDES AN ADDITIONAL LEVEL OF SHIELDING IN SOME APPLICATIONS
PROVIDES A LEVEL OF SECURITY NOT OFFERED IN OTHER MANUFACTURES DESIGNS
SHOWN WITH OPTIONAL WALL TRACK AND CABLE EGRESS
EXTENDER FRAME
BOLT OR WELD ON EXTENDERS AVAILABLE
PROVIDE ADDITION ROOM FOR CABLING AND COOLING
FITS MOST OF H&H SIDE PANEL OPTIONS SHOWN WITH HINGED SIDE
FRONT AND REAR ACCESS PANELS AVAILABLE
SIDE OPTIONS
FLUSH LIFT OFF
FLUSH REMOVABLE
HINGED DOOR
SOLID INTEGRAL
EXTENDER FRAME
SIDE OPTIONS
FLUSH LIFT OFF
FLUSH REMOVABLE
HINGED DOOR
SOLID INTEGRAL
EXTENDER FRAME
CLOSE
DOORS
FRONT & REAR DOORS ARE FORMED STEEL PANELS
FLUSH OR FACE MOUNT – RIGHT OR LEFT HINGING
HINGING UP TO 180 DEGREE
TAMPER-PROOF HINGING AVAILABLE
AVAILABLE AS SOLID, PERFORATED, LOUVERED, VENTED OR WITH ACRYLIC OR POLYCARBONATE INSERTS
FULL HEIGHT
FACE AND FLUSH MOUNT AVAILABLE
AVAILABLE AS SOLID, LOUVERED, AND PERFORATED INSERTS
FRONT DOORS AVAILABLE WITH ACRYLIC OR POLYCARBONATE INSERTS
PERFORATED HOT AISLE COLD AISLE CONFIGURATIONS AVAILABLE
FANS CAN BE ADDED TO DOORS AS NEEDED
MOST STYLES REMOVABLE WITHOUT TOOLS
BEVELED
AESTHETICALLY PLEASING ADDITION FOR ANY APPLICATION
AVAILABLE WITH PERFORATED OR ACRYLIC INSERTS
ADDITIONAL PERFORATING CAN BE ADDED TO BEVELED SECTIONS
LIFTOFF HINGING WITH 150 DEGREES OF SWING
FLUSH REMOVABLE ACCESS PANEL
DOOR HEIGHT LESS THAT THE FULL OPENING
STANDARD EIA 310 MOUNTING PROVISIONS IN PANEL AREA
I/O PANELS, PDU, AND OTHER DEVICES CAN BE INSTALLED
SINGLE OR MULTIPLE PANELS CAN BE USED
VARIOUS DOOR HEIGHTS AVAILABLE
PANELS CAN BE INSTALLED ABOVE OR BELOW THE DOOR
BIFOLD
DOORS FOLD IN THE CENTER
GREAT SOLUTION WHEN AISLE SPACE IS LIMITED
SINGLE AND MULTI POINT LATCHING OPTIONS
AVAILABLE AS SOLID, LOUVERED, OR WITH PERFORATED INSERT
FRENCH DOOR
DOORS OPENS? IN THE CENTER
GREAT SOLUTION WHEN AISLE SPACE IS LIMITED
SHOWN ON OPTIONAL EXTENDER FRAME
AVAILABLE AS SOLID, LOUVERED, OR WITH PERFORATED INSERT
FAN & FILTER
FAN AND FILTER IN ONE PACKAGE
CONFIGURABLE TO MEET SPECIAL APPLICATIONS
FILTER REMOVABLE AND WASHABLE
NEMA 3R
MULTIPOINT LATCHING HELPS WITH GASKET COMPRESSION
TWO, THREE, AND FOUR POINT LATCHING AVAILABLE
DOUBLE LOUVERED PANEL AND RECESSED FAN HELPS PROTECT AGAINST OVERHEAD SPRINKLERS OR DRIPPING WATER
OTHER SPECIAL APPLICATION DOORS AVAILABLE
DOORS
FRONT & REAR DOORS ARE FORMED STEEL PANELS
FLUSH OR FACE MOUNT – RIGHT OR LEFT HINGING
HINGING UP TO 180 DEGREE
TAMPER-PROOF HINGING AVAILABLE
AVAILABLE AS SOLID, PERFORATED, LOUVERED, VENTED OR WITH ACRYLIC OR POLYCARBONATE INSERTS
FULL HEIGHT
FACE AND FLUSH MOUNT AVAILABLE
AVAILABLE AS SOLID, LOUVERED, AND PERFORATED INSERTS
FRONT DOORS AVAILABLE WITH ACRYLIC OR POLYCARBONATE INSERTS
PERFORATED HOT AISLE COLD AISLE CONFIGURATIONS AVAILABLE
FANS CAN BE ADDED TO DOORS AS NEEDED
MOST STYLES REMOVABLE WITHOUT TOOLS
BEVELED
AESTHETICALLY PLEASING ADDITION FOR ANY APPLICATION
AVAILABLE WITH PERFORATED OR ACRYLIC INSERTS
ADDITIONAL PERFORATING CAN BE ADDED TO BEVELED SECTIONS
LIFTOFF HINGING WITH 150 DEGREES OF SWING
FLUSH REMOVABLE ACCESS PANEL
DOOR HEIGHT LESS THAT THE FULL OPENING
STANDARD EIA 310 MOUNTING PROVISIONS IN PANEL AREA
I/O PANELS, PDU, AND OTHER DEVICES CAN BE INSTALLED
SINGLE OR MULTIPLE PANELS CAN BE USED
VARIOUS DOOR HEIGHTS AVAILABLE
PANELS CAN BE INSTALLED ABOVE OR BELOW THE DOOR
BIFOLD
DOORS FOLD IN THE CENTER
GREAT SOLUTION WHEN AISLE SPACE IS LIMITED
SINGLE AND MULTI POINT LATCHING OPTIONS
AVAILABLE AS SOLID, LOUVERED, OR WITH PERFORATED INSERT
FRENCH DOOR
DOORS OPENS? IN THE CENTER
GREAT SOLUTION WHEN AISLE SPACE IS LIMITED
SHOWN ON OPTIONAL EXTENDER FRAME
AVAILABLE AS SOLID, LOUVERED, OR WITH PERFORATED INSERT
FAN & FILTER
FAN AND FILTER IN ONE PACKAGE
CONFIGURABLE TO MEET SPECIAL APPLICATIONS
FILTER REMOVABLE AND WASHABLE
NEMA 3R
MULTIPOINT LATCHING HELPS WITH GASKET COMPRESSION
TWO, THREE, AND FOUR POINT LATCHING AVAILABLE
DOUBLE LOUVERED PANEL AND RECESSED FAN HELPS PROTECT AGAINST OVERHEAD SPRINKLERS OR DRIPPING WATER
OTHER SPECIAL APPLICATION DOORS AVAILABLE
DOORS
FULL HEIGHT
BEVELED
FLUSH REMOVABLE ACCESS PANEL
BIFOLD
FRENCH DOOR
FAN & FILTER
NEMA 3R
DOORS
FULL HEIGHT
BEVELED
FLUSH REMOVABLE ACCESS PANEL
BIFOLD
FRENCH DOOR
FAN & FILTER
NEMA 3R
CLOSE
ACCESSORIES
Examples of the Accessory options available for use across all H&H enclosure/cabinet types
EQUIPMENT MOUNTING
Meets EIA 310-E standard equipment mounting specs and accepts all H&H and OEM accessories
Tapped, Universal Square Hole or Round through Hole mounting options.
L shaped or Combination with dual mounting surfaces.
Vertical strut for side mounting chassis supports and other accessories.
Specialty mounting solutions available.
SHELVES DRAWERS CHASSIS SUPPORTS
Standard fixed four point mounting
Two point cantilever mounting
Adjustable rear mounting
Pull out slide mounted
Solid, Vented including ESD surfaces options
Heavy duty variations available
Storage drawers, with and without lids
Chassis Guides for additional support in a variety of lengths
CASTER LEVELERS
Swivel, rigid and locking casters, wheels from 2” to 6” diameter
Standard Weight capacities from 200lbs to 1200lbs, Rack casters available up to 5200 lbs.
Steady cabinets with Caster brakes or Floor Locks.
Levelers, retractable anti-tip legs and extended bases provide support and stability.
ELECTRICAL
Vertical and horizontal power distribution options starting at 15A NEMA and 10A IEC
Racks support “smart” PDU installation
Hardwired receptacle and junction box integration as needed
Grounding choices include:
Solid Copper bus bars
Grounding studs
Ground Cables and Harnesses
Banana Jacks
ESD static control laminate and mats
Isolated ground options available.
Additional Options
INTERNAL CABINET LIGHTING SYSTEMS
EXTERNAL ALERT LIGHTS
MAIN POWER SHUT OFF OPTIONS
CABLE MANAGEMENT STRAIN RELIEF
Organize and support data, fiber optic, and electrical cables
Vertical and horizontal routing as needed
Available articulating cable arms and rack mounted cable booms
Grommet cable pass thru panel options for bases, sides, tops, and doors
I/O, brush panels, gland plates available for cable egress and airflow management
AIR FLOW MANAGEMENT
Axial fans and on board fan trays move ambient air
Package blowers and impeller based assemblies to pressurize or exhaust
Rack mount, base mount, door and cabinet washable filter options
Brushes and baffles available to help restrict air flow control as needed
Air conditioning and heat exchange systems for standalone applications
Thermal and Acoustical foam can be added to most enclosures
Thermostats, Speed control and temperature monitoring options available
DESKS - EQUIPMENT ARMS
Front mount desks available for all single and multi-bay configurations
Foldable desk options for front and side of bay
Pull out writing surfaces with lock in/lock out feature
Monitors, Keyboards & other Peripherals external mounting options
Painted steel and laminate options available, including ESD options
ACCESSORIES
Examples of the Accessory options available for use across all H&H enclosure/cabinet types
EQUIPMENT MOUNTING
Meets EIA 310-E standard equipment mounting specs and accepts all H&H and OEM accessories
Tapped, Universal Square Hole or Round through Hole mounting options.
L shaped or Combination with dual mounting surfaces.
Vertical strut for side mounting chassis supports and other accessories.
Specialty mounting solutions available.
SHELVES DRAWERS CHASSIS SUPPORTS
Standard fixed four point mounting
Two point cantilever mounting
Adjustable rear mounting
Pull out slide mounted
Solid, Vented including ESD surfaces options
Heavy duty variations available
Storage drawers, with and without lids
Chassis Guides for additional support in a variety of lengths
CASTER LEVELERS
Swivel, rigid and locking casters, wheels from 2” to 6” diameter
Standard Weight capacities from 200lbs to 1200lbs, Rack casters available up to 5200 lbs.
Steady cabinets with Caster brakes or Floor Locks.
Levelers, retractable anti-tip legs and extended bases provide support and stability.
ELECTRICAL
Vertical and horizontal power distribution options starting at 15A NEMA and 10A IEC
Racks support “smart” PDU installation
Hardwired receptacle and junction box integration as needed
Grounding choices include:
Solid Copper bus bars
Grounding studs
Ground Cables and Harnesses
Banana Jacks
ESD static control laminate and mats
Isolated ground options available.
Additional Options
INTERNAL CABINET LIGHTING SYSTEMS
EXTERNAL ALERT LIGHTS
MAIN POWER SHUT OFF OPTIONS
CABLE MANAGEMENT STRAIN RELIEF
Organize and support data, fiber optic, and electrical cables
Vertical and horizontal routing as needed
Available articulating cable arms and rack mounted cable booms
Grommet cable pass thru panel options for bases, sides, tops, and doors
I/O, brush panels, gland plates available for cable egress and airflow management
AIR FLOW MANAGEMENT
Axial fans and on board fan trays move ambient air
Package blowers and impeller based assemblies to pressurize or exhaust
Rack mount, base mount, door and cabinet washable filter options
Brushes and baffles available to help restrict air flow control as needed
Air conditioning and heat exchange systems for standalone applications
Thermal and Acoustical foam can be added to most enclosures
Thermostats, Speed control and temperature monitoring options available
DESKS - EQUIPMENT ARMS
Front mount desks available for all single and multi-bay configurations
Foldable desk options for front and side of bay
Pull out writing surfaces with lock in/lock out feature
Monitors, Keyboards & other Peripherals external mounting options
Painted steel and laminate options available, including ESD options
Accesories
EQUIPMENT MOUNTING
SHELVES DRAWERS CHASSIS SUPPORTS
Casters Levelers
Electrical
CABLE MANAGEMENT STRAIN RELIEF
AIR FLOW MANAGEMENT
DESKS - EQUIPMENT ARMS
Accesories
EQUIPMENT MOUNTING
SHELVES DRAWERS CHASSIS SUPPORTS
Casters Levelers
Electrical
CABLE MANAGEMENT STRAIN RELIEF
AIR FLOW MANAGEMENT
DESKS - EQUIPMENT ARMS
